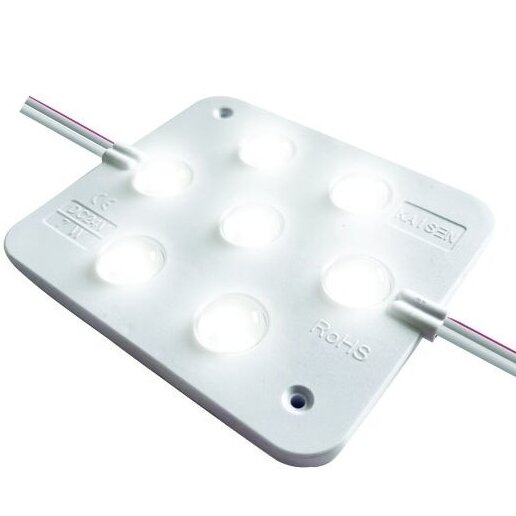

T7MAX 7.0W 24V
TECHNICAL SPECIFICATIONS
LED type2835Input24V DCColor temperature7000 KBeam angle175ºProtection levelIP 67Center-to-center distance19.7"(500mm)Working temperature-22°F +122°FAvailable colorsWhiteLight output910 lmPower7 W-
TECHNICAL INFORMATION LIGHT DISTRIBUTION GRAPH
LED type 2835 Input 24V DC Color temperature 7000K Beam angle 165º Protection level IP 67 Center-to-center distance 19.7"(500 mm) Working temperature -22ºF + 122ºF Available colors White Power 7 W Light output 910 lm
PRODUCT DIMENSIONS

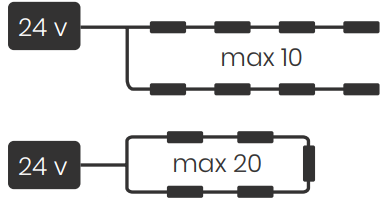

PACKAGING CONNECTION DIAGRAM
PACKING TIPE
CHAIN
BOX
Quantity
10 pcs 180 pcs Weight
2.01 lbs 36.46 lbs
