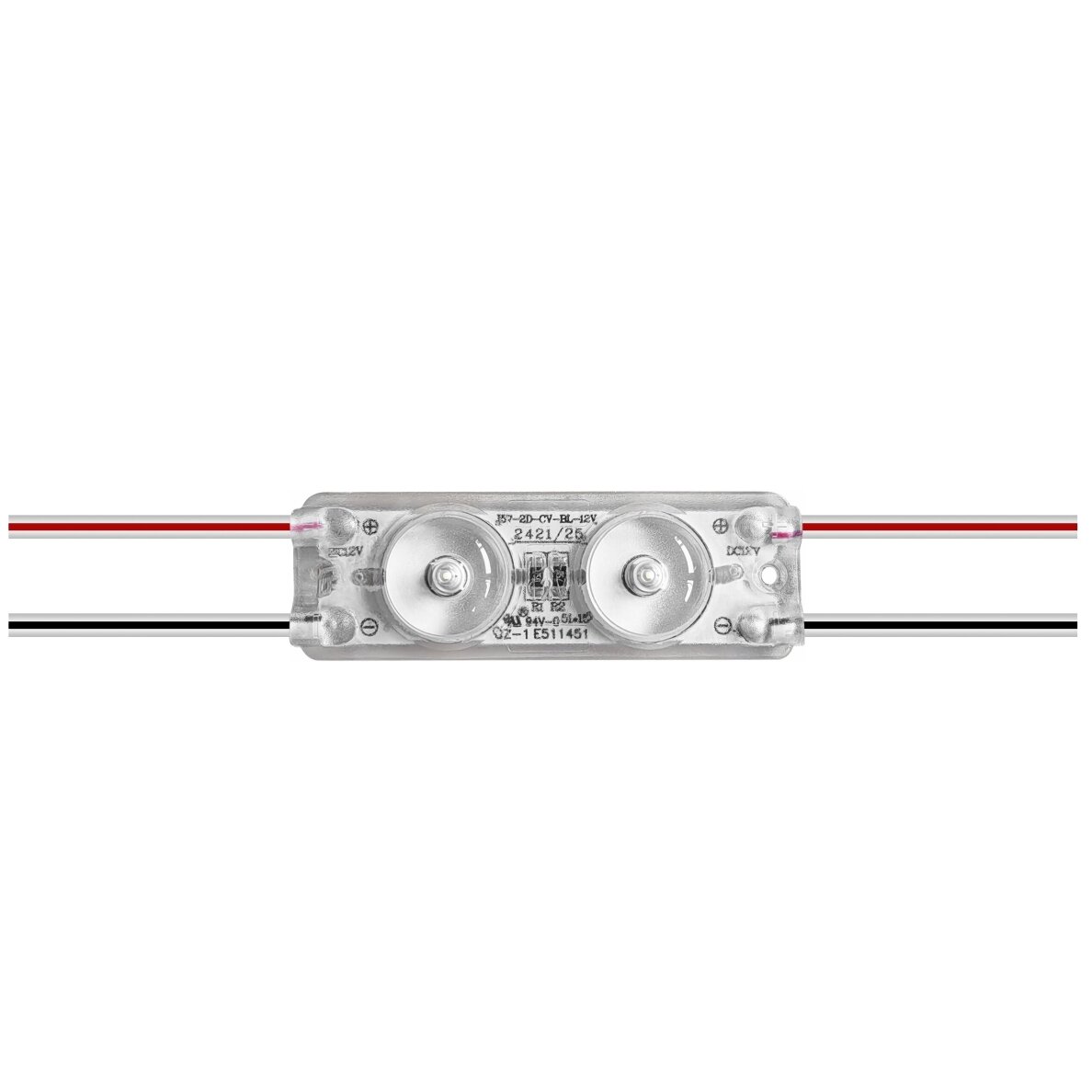

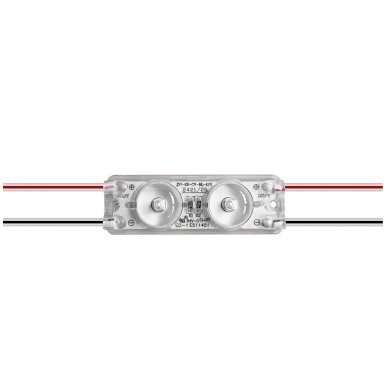

T2MAX 1.0W 24V

Inquire about this item

TECHNICAL SPECIFICATIONS

LED type

2835

Input

24V DC

Color temperature

7000 K

Beam angle

175º

Protection level

IP 67

Center-to-center distance

8.07"(205mm)

Working temperature

-22°F +122°F

Available colors

White

Light output

170 lm

Power

1 W

Installation depth	Distance between centers	Quantity per 1 sq.m.	Power per 1 sq.m.
2.76"(70 mm)	7.87"(200 mm)	25 pcs	25 W
3.15"(80 mm)	7.87"(200 mm)	25 pcs	25 W
3.54"(90 mm)	7.87"(200 mm)	25 pcs	25 W
3.94"(100 mm)	7.87"(200 mm)	25 pcs	25 W

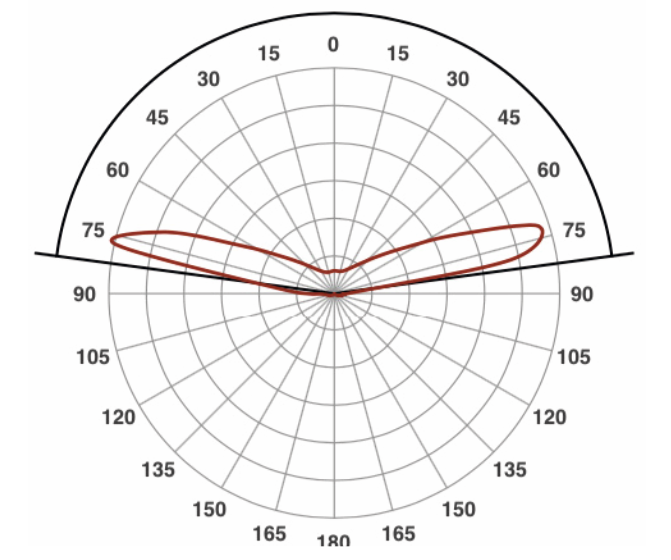

TECHNICAL INFORMATION & LIGHT DISTRIBUTION GRAPH

LED type	2835
Input	24V DC
Color temperature	7000K
Beam angle	175º
Protection level	IP 67
Center-to-center distance	8.07"(205 mm)
Working temperature	-22ºF + 122ºF
Available colors	White
Power	1 W
Light output	170 lm

PRODUCT DIMENSIONS

PACKAGING & CONNECTION DIAGRAM

PACKING TIPE	CHAIN	PACKAGE	BOX
Quantity	40 pcs	120 pcs	960 pcs
Weight	1.25 lbs	3.7 lbs	30.03 lbs
