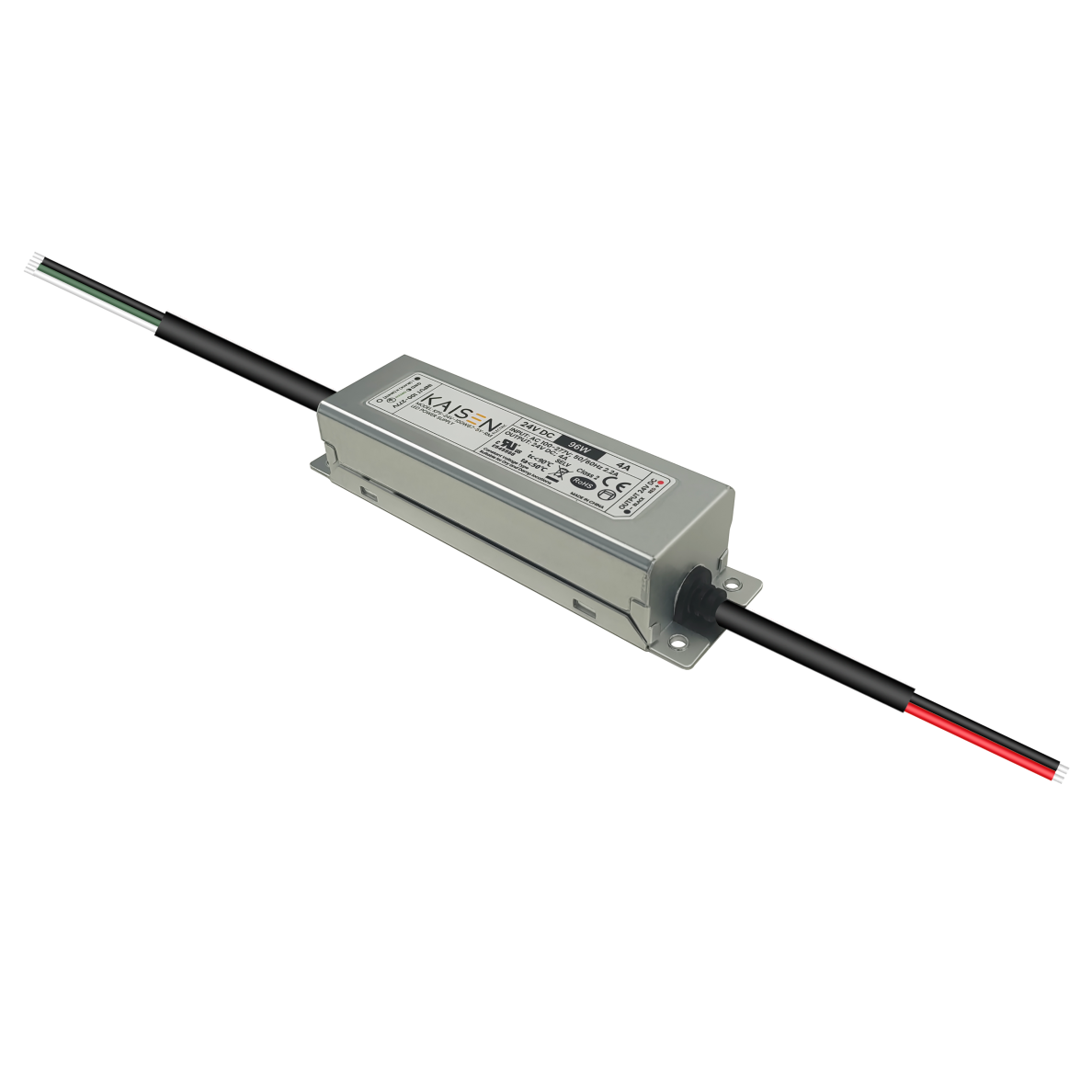

KPS-V24-100W67-5Y-RM
TECHNICAL CHARACTERISTICS
Output Voltage24 VRated Current4 ARated Power98 WInput Voltage100-277 VInput Ferquency50/60 HzEfficiency87%Input Current120V : 1.75A maxProtection levelIP 67-

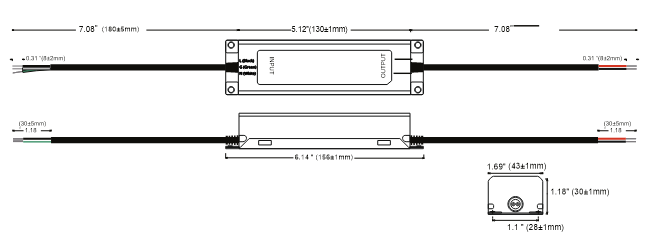

TECHNICAL INFORMATION DIMMENSIONS
Output Voltage 12 V 24 V Rated Current 8 A 4 A Rated Power 98 W 98W Ripple & Noise (max.) <480mVp-p <480mVp-p Setup, Rise Time 1500ms/230VAC 1500ms/230VAC
STORAGE AND OPERATING CONDITIONS PACKAGING
Working Temp -13˚F ~ 122˚F Working Humidity 10% ~ 95%RH Storage Temp -31˚F ~ 149˚F Storage Humidity 10% ~ 95%RH Product Dimension 6.14”(156mm) x 1.69”(43mm) x 1.18”(30 mm) Products Net Weight 0.79 lbs (360 g) PCS/Carton (QTY) 50 PCS Master Carton Size 13.78”(350mm) x13.78”( 350mm) x9.84”( 250 mm) G. Weight/Carton 44.1 lbs (20 kg)
