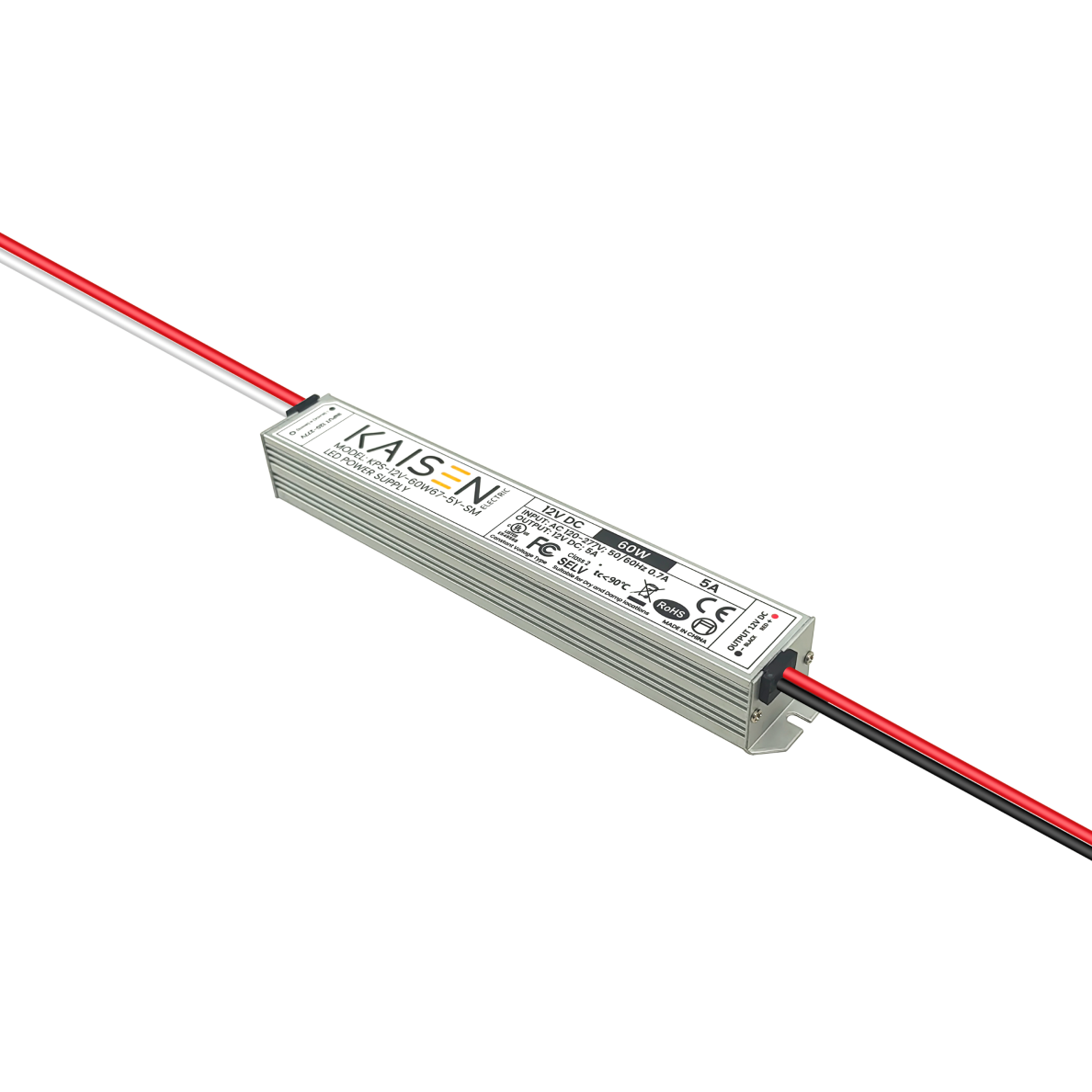

KPS-V12-60W67-5Y-SM
TECHNICAL CHARACTERISTICS
Output Voltage12V / 24VRated Current5A / 2,5ARated Power60 WInput Voltage120-277VInput Ferquency50/60 HzEfficiency90%Input Current120V : 0.75A maxProtection levelIP 67-

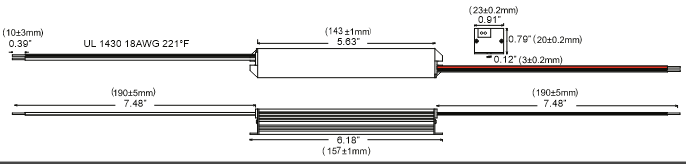

TECHNICAL INFORMATION DIMMENSIONS
Output Voltage 12 V 24 V Rated Current 5 A 2,5 A Rated Power 60 W 60 W Ripple & Noise (max.) <400mVp-p <400mVp-p Setup, Rise Time 1500ms/230VAC 1500ms/230VAC
STORAGE AND OPERATING CONDITIONS PACKAGING
Working Temp -13˚F ~ 122˚F Working Humidity 10% ~ 95%RH Storage Temp -31˚F ~ 149˚F Storage Humidity 10% ~ 95%RH Product Dimension 6.18”(157mm) x 0.91”(23mm) x 0.79”(20 mm) Products Net Weight 0.31 lbs (140 g) PCS/Carton (QTY) 100 PCS Master Carton Size 15.2”(385mm) x14”( 355mm) x5.1”( 130 mm) G. Weight/Carton 32.2 lbs (14.6 kg)
