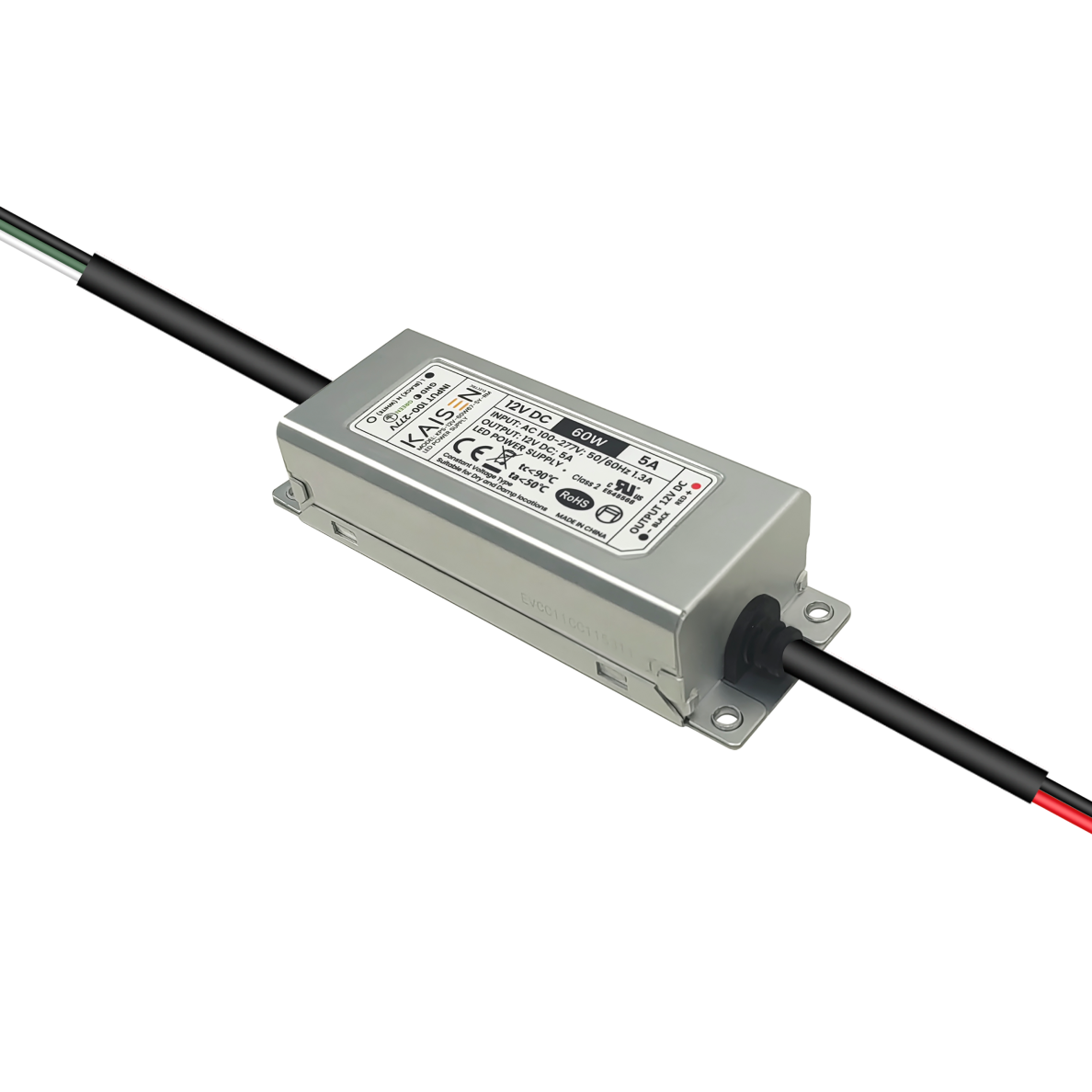

KPS-V12-60W67-5Y-RM
TECHNICAL CHARACTERISTICS
Output Voltage12V / 24VRated Current5A / 2.5ARated Power60 WInput Voltage100-277 VInput Ferquency50/60 HzEfficiency88 %Input Current120V : 0.75A maxProtection levelIP 67LifetimeLifetime >50,000 hours-

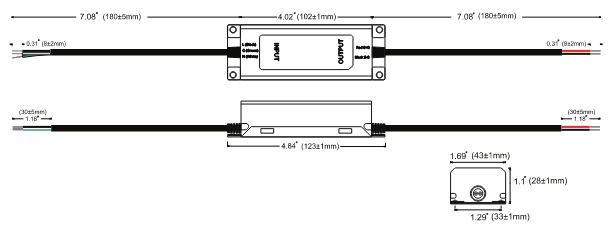

TECHNICAL INFORMATION DIMMENSIONS
Output Voltage 12 V 24 V Rated Current 5 A 2,5 A Rated Power 60 W 60W Ripple & Noise (max.) <600mVp-p <600mVp-p Setup, Rise Time 1500ms/230VAC 1500ms/230VAC
STORAGE AND OPERATING CONDITIONS PACKAGING
Working Temp -13˚F ~ 122˚F Working Humidity 10% ~ 95%RH Storage Temp -31˚F ~ 149˚F Storage Humidity 10% ~ 95%RH Product Dimension 4.84”(123mm) x 1.69”(43mm) x 1.1”(28 mm) Products Net Weight 0.55 lbs (250 g) PCS/Carton (QTY) 50 PCS Master Carton Size 13.78”(350mm) x13.78”( 350mm) x9.84”( 250 mm) G. Weight/Carton 36.4 lbs (16.5 kg)
